Mermaid diagrams

Mermaid turns text into a diagram. GDDKit bundles the Mermaid runtime, so ordinary diagram preview does not require a cloud service or Mermaid account.

Insert a diagram template

Select the Mermaid control in the Markdown toolbar, then choose one of eight starters:

• Flowchart
• Sequence Diagram
• Class Diagram
• State Diagram
• Entity Relationship
• Gantt Chart
• Pie Chart
• Mindmap

The editor inserts a fenced block. Edit the text while Split mode renders the diagram:

```mermaid
flowchart LR
    Explore[Explore] --> Encounter[Meet a challenge]
    Encounter --> Decide{Commit resources?}
    Decide -->|Yes| Resolve[Resolve encounter]
    Decide -->|No| Reposition[Reposition]
    Resolve --> Reward[Gain reward]
    Reward --> Upgrade[Upgrade]
    Upgrade --> Explore
    Reposition --> Explore
```

GDDKit matches the language label without regard to case. Use lowercase mermaid for consistency with the toolbar templates and other Markdown tools.

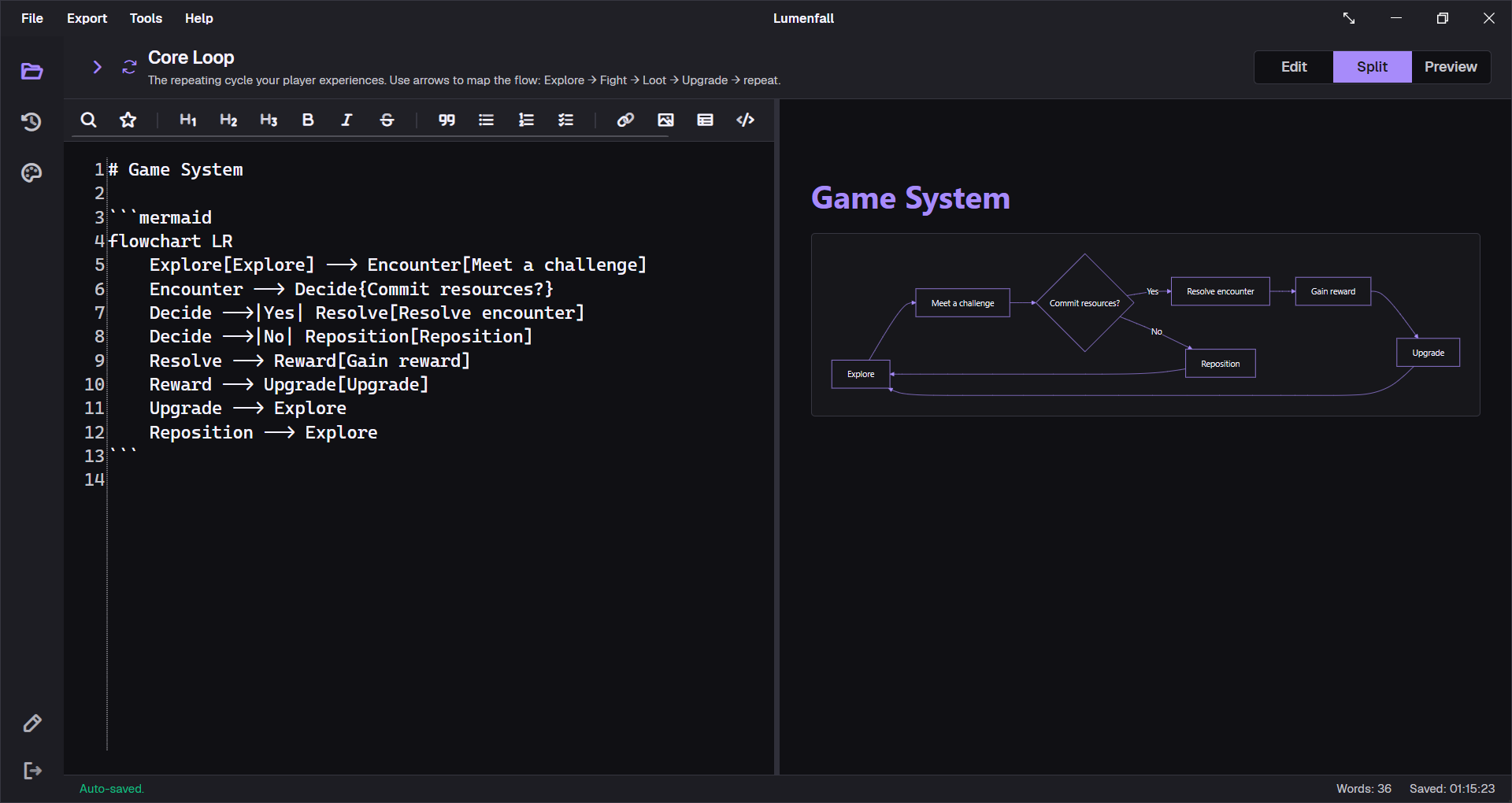

A game-system flowchart is rendered live from the fenced Mermaid source in Split mode.

Choose the right diagram

Diagram	Good GDD use
Flowchart	Core loop, quest branches, menu flow, fail/recovery paths.
State diagram	Enemy AI, weapon state, player movement, UI screen states.
Sequence diagram	Client/server interaction, combat resolution, save/load messages.
Class diagram	Conceptual data ownership and system relationships.
Entity relationship	Economy, inventory, progression, content database design.
Gantt chart	Milestones, dependencies, production phases.
Pie chart	Small proportional summaries; avoid when exact comparison matters.
Mindmap	Early concept exploration, content taxonomy, narrative themes.

Use diagrams to explain a relationship that would be slower to understand as prose. Follow each important diagram with a brief written interpretation so the design remains accessible and reviewable in fallback output.

State-machine example

```mermaid
stateDiagram-v2
    [*] --> Patrol
    Patrol --> Alerted: Player detected
    Alerted --> Attack: In range
    Attack --> Reposition: Player counters
    Reposition --> Attack
    Alerted --> Patrol: Player lost
    Attack --> [*]: Enemy defeated
```

Keep node labels concise. Put exact timing, tuning, and edge cases in a nearby table rather than forcing every rule into the diagram.

Preview and PDF behavior

• The live preview renders the block to SVG in the embedded WebView.
• PDF export asks a WebView renderer for a high-resolution image and places it in the A4 layout.
• A failed Mermaid render should not destroy the whole document: the PDF can show an error/fallback area and readable source instead.
• GDDKit 2.0.1 improves Mermaid PDF reliability on Linux and macOS.

If the diagram is mission-critical, inspect the exported PDF rather than treating the live preview as final proof.

Style diagrams in custom PDFs

The PDF Theme Designer exposes separate colors for:

• diagram background;
• node background and node text;
• connections;
• borders;
• cluster background.

These settings affect exported PDF diagrams, not Mermaid syntax. Check text contrast and line visibility against the actual PDF theme. See PDF Theme Designer.

Troubleshoot a diagram

1. Confirm the opening and closing fences each use three backticks.
2. Confirm the opening label names Mermaid; normalize it to lowercase mermaid for consistency.
3. Start from a toolbar template and change one line at a time.
4. Avoid punctuation-heavy IDs; put human-readable text inside brackets.
5. Check that every quote, bracket, and relationship is closed.
6. If preview works but PDF fallback appears, update to the latest 2.x build and retry with a minimal diagram.
7. On Linux, confirm WebKitGTK 4.1 is installed.

For a syntax error, reduce the block to two nodes and one edge, verify it, then reintroduce branches gradually.
