Markdown editor

Each GDDKit section is Markdown text. The editor keeps the source readable while the live preview and exporters turn it into structured output.

Formatting toolbar

Control	Inserted or applied Markdown	Notes
H1 / H2 / H3	#, ##, ###	The exporter already creates a section heading and removes one leading H1 from section content. Prefer H2 for subsections.
Bold	**text**	Ctrl + B in the editor.
Italic	*text*	Ctrl + I.
Strikethrough	~~text~~	Useful for explicitly cut scope items.
Quote	> text	Use for design principles, references, and decisions.
Bulleted list	- item	Applies to selected lines.
Numbered list	1. item	Selected lines are renumbered in sequence.
Task list	- [ ] item	Preview and PDF show checklist state.
Link	[label](https://…)	Ctrl + K.
Image		Copies a supported file into the project images/ folder.
Table	Pipe table	Starts a three-column example.
Inline code	`value`	Best for identifiers, keys, and literal values.
Code block	fenced csharp block	Change the language label to match the example.
Divider	---	Separates major ideas; use sparingly.
Mermaid	fenced mermaid block	Opens a menu of eight diagram templates.

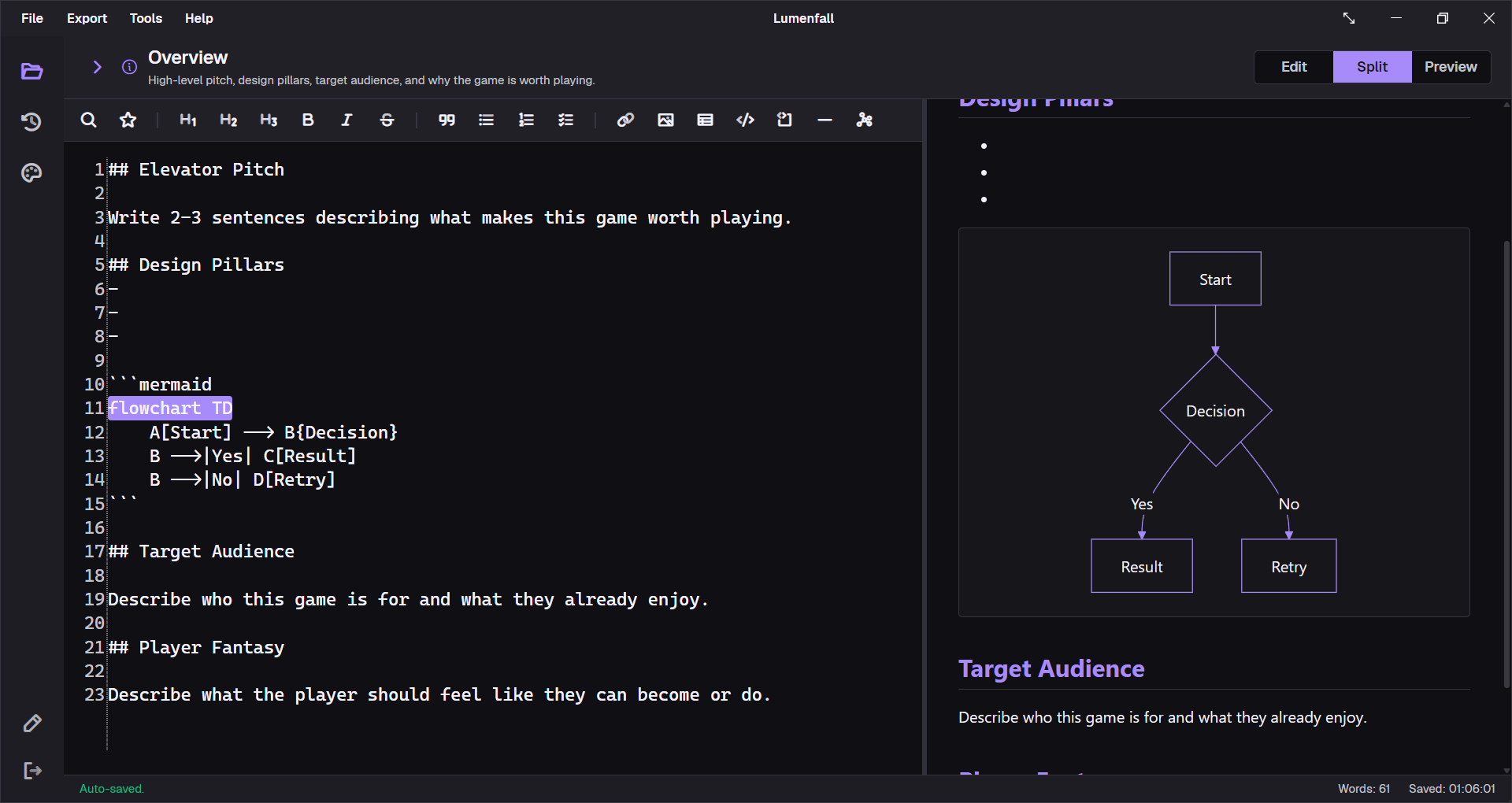

The toolbar remains accessible in Split mode while the selected flowchart declaration and rendered preview stay visible.

A section pattern that exports well

## Design goal

Explain the intended player outcome in one paragraph.

### Rules

- The action consumes one stamina point.
- The player can queue one follow-up action.
- [ ] Validate the controller timing at 30 fps.

### Tuning values

| Parameter | Prototype | Target |
| --- | ---: | ---: |
| Recovery | 0.45 s | 0.30 s |
| Buffer | 120 ms | 160 ms |

> Decision: readability wins over maximum input speed.

Use one idea per paragraph, descriptive headings, and compact tables. A GDD is easier to review when a reader can scan decisions separately from background reasoning.

Preview and PDF support

The shared, reliable authoring set includes:

• H1–H6 headings and paragraphs;
• bold, italic, strikethrough, and inline code;
• ordered, unordered, nested, and task lists;
• pipe tables with alignment;
• blockquotes, fenced code blocks, and horizontal rules;
• standalone Markdown images;
• Mermaid blocks;
• styled link text.

The preview may display web-oriented Markdown or raw HTML differently from the PDF renderer. Raw HTML is not treated as a mini web page in PDF export and may be shown as readable text or code instead.

Open only trusted project files

The live preview renders project-authored Markdown and raw HTML in an embedded browser and can load remote resources. Treat a .gddkit file from an unknown source like other active document content: review it before opening, and avoid untrusted HTML.

Heading rules

GDDKit creates the visible section title in Markdown and PDF exports. When the section content begins with an H1, that first H1 is removed during export to avoid a duplicated title.

Recommended hierarchy:

• section name supplied by GDDKit;
• H2 for major topics inside the section;
• H3 for subdivisions;
• H4 only when a long technical section genuinely needs it.

Do not use heading level only for visual size. Consistent hierarchy improves the PDF table of contents and reviewability.

Links

HTTP(S) and mail links can open through the operating system from the live preview. In exported PDFs, link text is styled, but v2 does not guarantee a clickable PDF hyperlink annotation. Include a visible short URL when clickability matters to the recipient.

Code and technical specifications

Use fenced blocks for code, data, formulas, or configuration:

```csharp
if (stamina > 0)
{
    player.Dash();
}
```

Keep extremely long lines out of code blocks; PDF pages are fixed-width A4. For large schemas, link to the source repository and document the design contract rather than pasting an implementation file.

Common formatting mistakes

• A table is too wide: split it into two tables or shorten cell prose.
• The PDF repeats a section title: remove the leading H1 or convert it to H2.
• An image becomes text in PDF: put the image Markdown on its own paragraph; see Images.
• A Mermaid block is plain code: the opening fence must start with three backticks followed immediately by mermaid.
• Raw HTML differs in export: replace it with supported Markdown.
• A selected list formats oddly: ensure the selection covers complete lines, then apply the list control again.
